Reverse Engineering Overview

iLenSys leverages its expertise in mechanical skills and advanced computer-aided tools to assist clients in digitizing products of various sizes, capturing design information such as features, dimensions, and performance parameters. With our 3D scanning and CMM techniques, we help identify the design intent and deliver manufacturing drawings.

Reverse Engineering Capabilities at iLenSys

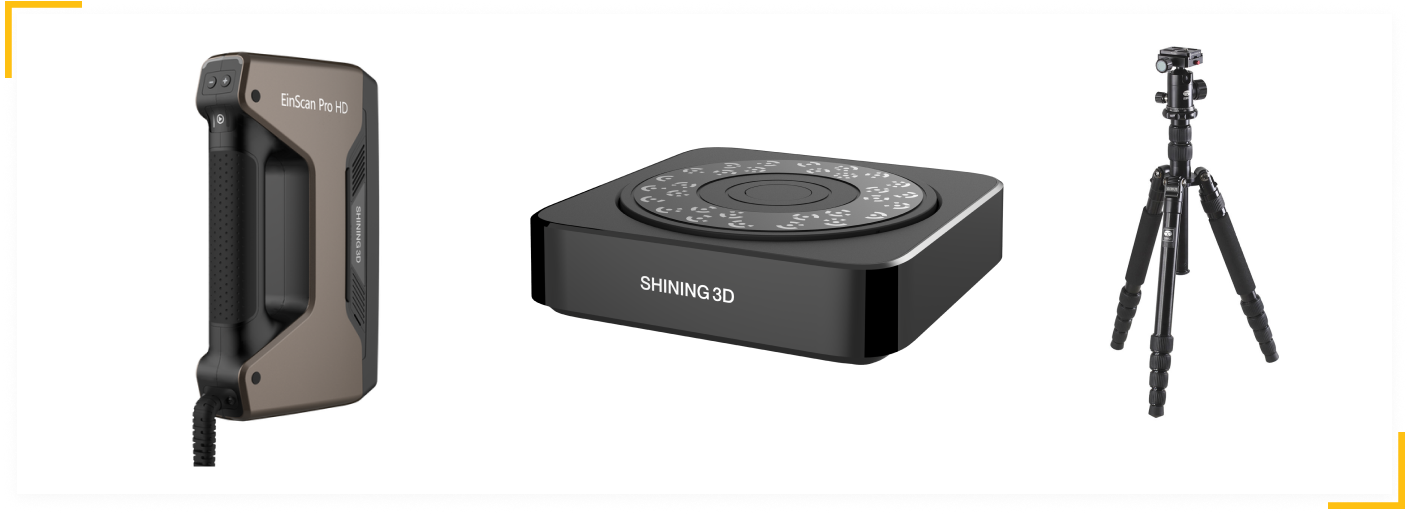

EinScan PRO HD

With Industrial Pack (Tripod, Turntable and Color pack)

Scan Mode
  • Handheld HD
  • Handheld Rapid
  • Fixed
  • Fixed Turntable
  • Up to 0.045 mm
  • Up to 0.1 mm
  • 0.04 mm (Single Shot Accuracy)
Machine Specifications

Light Source: LED

3D Scanning Mode: LED

  • Handheld HD
  • Handheld Rapid
  • Fixed
  • Fixed with Turntable


Single Scan Range: 209*160 mm to 310*240 mm

Scan Accuracy: 0.04 mm

Volumetric Accuracy: 0.3 mm/m

Scan Speed: 10-30 frames/s Color and Texture Scan capability


Scan Processing: LED

  • Point Cloud & Mesh Editing
  • Precise Alignment


Feature Extraction and Modeling: LED

  • Cross Section / Precise Geometry / Extraction
  • Nurbs Surfacing


Output Formats: LED

  • OBJ; STL; ASC; PLY; P3 ; 3MF

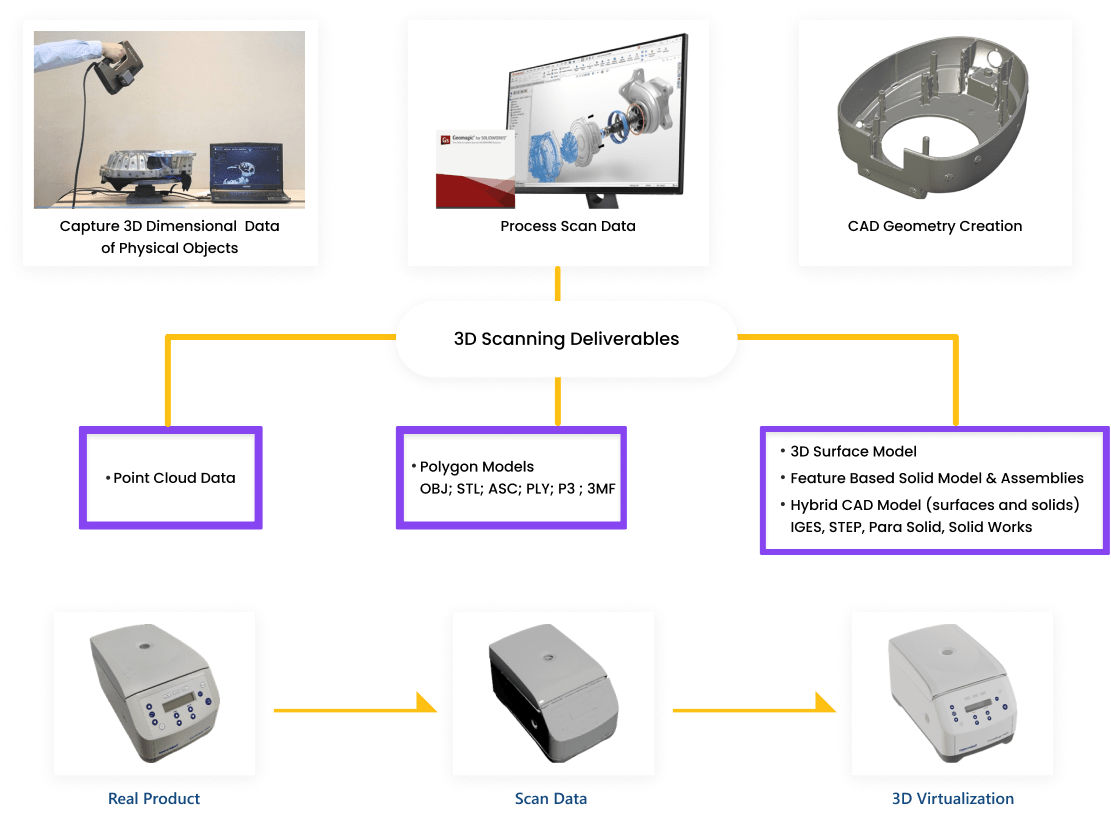

3D Scanning Process


Applications of Reverse Engineering

Redesign of Legacy Parts
Incorporating Shop floor manufacturing changes to CAD design
Surface and Material Analysis
Creating Manufacturing Drawings with DFMA Considerations
Restoring of Obsolete Design Data
Competitive benchmarking
